Byonics Radio / Power Cables will connect a TinyTrak4, TinyTrak3+, WXTrak or PicCon to most amateur radio transceivers. These 18-inch cables connect to the microphone and earphone/speaker jack of the radio, and also connect to the power supply, either via a cigarette lighter plug, an Powerpole connector, or the radio microphone jack. Some cables may be compatible with radios not listed. If it looks like a cable may work with your radio, you can order one to try it. If it works, please let us know and we will add the radio to the supported list. If it doesn't work, you can return it for a full refund. If your radio is not currently listed, please contact Byonics and request we add support for that radio. We also carry cables for mobile radios.
The Radio/Power Cable Selection Chart - will help in selecting the correct cable for your radio.

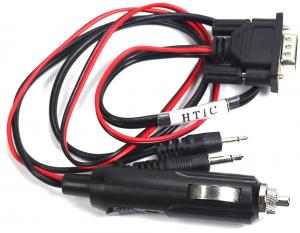

For Yaesu, ADI, Alinco, and Radio Shack handhelds with 2.5mm / 3/32" mic jack and 3.5mm / 1/8" earphone jack.
Compatible with Yaesu FT-411, FT-470, FT-530, and more. ADI AT-201 and more. Alinco DJ-M40T, DJ-A10. Radio Shack HTX-202 and more.
This cable can be used with newer Yaesu HTs with the 4-condutor mic/ear jack if combined with the Yaesu CT-91 or CT-44 adaptors.
This cable should also work on Icom handhelds. The only difference with the HT2 cable is that the HT1 has mono plugs.
When used with the TinyTrak, JP8/R8 MUST be jumpered/included on the PCB.
Wiring Diagram
HT1C - $22HT1P - $22
For Icom handhelds with 2.5mm / 3/32" mic jack and 3.5mm / 1/8" earphone jack.
Compatible with Icom T2H, IC-2AT, IC-V8, IC-T70A, IC-V80, ID-51A, and more.
This cable should also work on other handhelds. The only difference with the HT1 cable is that the HT2 has a stereo plugs.
This cable has been confirmed to NOT work with with Yaesu CT-91 adapter.
This cable has been reported to NOT fit in the Icom ID-51.
When used with the TinyTrak, JP8/R8 MUST be jumpered/included on the PCB.
Wiring DiagramHT2C - $22HT2P - $22

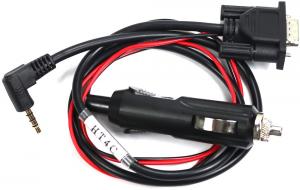

For Yaesu handhelds with a single 4-conductor non-threaded 3.5mm / 1/8" earphone and mic jack.
Compatible with Yaesu VX-150, VX-2R, VX-5R, FT-1DR, FT-2DR, FT-60R, FT-70DR and more.
It is NOT compatible with the Yaesu VX-7R, VX-170 or other Yaesu HTs with a threaded 4-conductor ear/mic jack. Instead use the Yaesu CT-91 adapter and the HT1 cable.
The radio plug is a right angle connector.
It has been reported that this cable doesn't fit well with some Yaesu HTs. If you already have the Yaesu CT-44 adapter, it would be better to get the HT1 cable to be sure of a good fit.
When used with the TinyTrak, JP8/R8 MUST be jumpered/included on the PCB.
Wiring Diagram
For Kenwood handhelds with 2.5mm / 3/32" earphone jack and 3.5mm / 1/8" mic jack.
Compatible with Kenwood TH-78A, TH-D7A, TH-D72A, TH-D74A, TH-K20A and more.
Note:For Wouxun and Baofeng radios, we recommend the HTK2 cables instead.
When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB.
Wiring DiagramHTKC - $22HTKP - $22
The HTK2 cables work better than the HTK cables with the Baofeng and Wouxun radios.
For Baofeng and Wouxun and compatible handhelds with 2.5mm / 3/32" earphone jack and 3.5mm / 1/8" mic jack.
Compatible with Baofeng UV-5R, and more. Wouxun KG-UV3D and more.
They have a single molded right angle connector for the 2.5mm and 3.5mm plug, where the HTK cables above have them as 2 separate plugs and wires. They also have a stereo plug on both connectors.
When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. HTK2C - $22HTK2P - $22

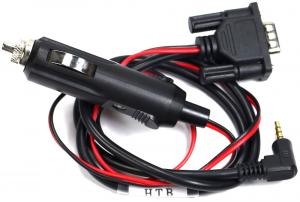

For Baofeng handhelds with a single non-threaded 4-conductor 3.5mm / 1/8" earphone and mic jack.
Compatible with Baofeng UV-3R, and more. NOT compatible with the UV-3R+, which would use the HTK2 cable.
When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. HTBC - $22HTBP - $22
