Mobile Radio / Power Interface Cables

Byonics Radio / Power Cables will connect a TinyTrak4, TinyTrak3+, WXTrak or PicCon to most amateur radio transceivers. These 18-inch cables connect to the microphone and earphone/speaker jack of the radio, and also connect to the power supply, either via a cigarette lighter plug, an Powerpole connector, or the radio microphone jack. Some cables may be compatible with radios not listed. If it looks like a cable may work with your radio, you can order one to try it. If it works, please let us know and we will add the radio to the supported list. If it doesn't work, you can return it for a full refund. If your radio is not currently listed, please contact Byonics and request we add support for that radio. We also carry cables for handheld radios.

The Radio/Power Cable Selection Chart - will help in selecting the correct cable for your radio.

M3 / M12 Cables for Mobiles

For mobiles radios with a 6-Pin Mini DIN data jack. Compatible with Kenwood TM-271A, TM-D700A, TM-D710A, TM-V71A, TM-V708A, TM-V7A, TM-733A, and more. Yaesu FT-7800R, FT-8800R, FT8900R, FT-817, and more. Icom IC-207H, IC-208H, IC21720H, IC-2800H, IC-2820H, IC-706MKIIG, and more. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. M3 Wiring Diagram M12 Wiring Diagram

M3C - $22
With 3.5mm / 1/8" speaker jack and fused cigarette lighter plug.

M3P - $22
With 3.5mm / 1/8" speaker jack and Powerpole.

M12C - $22
Gets received radio from mini DIN. With fused cigarette lighter plug.

M12P - $22
Gets received radio from mini DIN. With Powerpole.

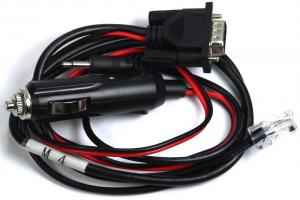

M4 Cables for Kenwood Mobiles

For Kenwood and compatible mobile radios with an 8-pin modular (8P8C/RJ45) mic jack and 3.5mm / 1/8" speaker jack. Compatible with Kenwood TM-733, TM-281A, TM-V71A, TM-D710A, TM-D700A, and more. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

M4C - $22
With fused cigarette lighter plug.

M4P - $22
With Powerpole.

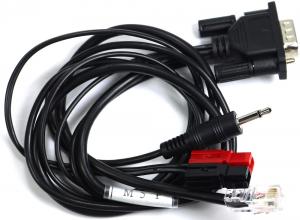

M5 Cables for Yaesu Mobiles

For Yaesu mobile radios with an 6-pin modular (6P6C/RJ11) mic jack and 3.5mm / 1/8" speaker jack. Compatible with Yaesu FT-90R, FT-2980R, FT-1900R, FT-2900R, FT-7900R, FT-8900R and more. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

M5C - $22
With fused cigarette lighter plug.

M5P - $22
With Powerpole.

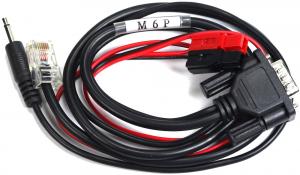

M6 Cables for Icom Mobiles

For Icom mobile radios with an 8-pin modular (8P8C/RJ45) mic jack and 3.5mm / 1/8" speaker jack. Compatible with Icom IC-706, IC-706MKIIG, IC-2300H, IC-2730A, ID-4100A, ID-5100A, IC-F1020, IC-F121, IC-F5021 and more. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

M6C - $22
With fused cigarette lighter plug.

M6P - $22
With Powerpole.

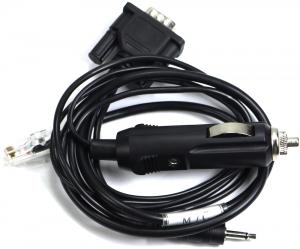

M7 Cables for Radio Shack Mobiles

For Radio Shack mobile radios with an 8-pin modular (8P8C/RJ45) mic jack and 3.5mm / 1/8" speaker jack. Compatible with Radio Shack HTX-212 & HTX-242. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

M7C - $22
With fused cigarette lighter plug.

M7P - $22
With Powerpole.

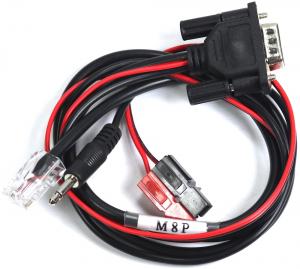

M8 Cables for older Yaesu Mobiles

For Yaesu mobile radios with an 8-pin modular (8P8C/RJ45) mic jack and 3.5mm / 1/8" speaker jack. Compatible with Yaesu FT-2400 & FT-2500. Note that most Yaesu mobiles use M5 cable above with a 6-pin modular mic jack. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

M8C - $22
With fused cigarette lighter plug.

M8P - $22
With Powerpole.

R1 Cables for Alinco and older Kenwood Mobiles

For Kenwood and Alinco compatible mobile radios with an 8-pin round screw-on mic jack and 3.5mm / 1/8" speaker jack. Do NOT attempt to power a GPS through a TinyTrak when using this S version cable unless the mic jack can handle the current. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

R1C - $22
With fused cigarette lighter plug.

R1P - $22
With Powerpole.

R1S - $22
Powered from radio mic jack.

R2 Cables for older Yaesu Mobiles

For Yaesu mobile radios with an 8-pin round screw-on mic jack and 3.5mm / 1/8" speaker jack. Compatible with Yaesu FT-5100, FT-5200 and more. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

R2C - $22
With fused cigarette lighter plug.

R2P - $22
With Powerpole.

R3 Cables for older Icom Mobiles

For Icom mobile radios with an 8-pin round screw-on mic jack and 3.5mm / 1/8" speaker jack. When used with the TinyTrak, JP8/R8 should NOT be jumpered/included on the PCB. Wiring Diagram

R3C - $22
With fused cigarette lighter plug.

R3P - $22
With Powerpole.

R4 Cables for older Radio Shack Mobiles

For Radio Shack mobile radios with an 8-pin round screw-on mic jack and 3.5mm / 1/8" speaker jack. Compatible with Radio Shack HTX-252. When used with the TinyTrak, JP8/R8 MUST be jumpered/included on the PCB. Wiring Diagram

R4C - $22
With fused cigarette lighter plug.

R4P - $22
With Powerpole.
